2.4G directional long-distance Reader
2.4G directional long-distance Reader using ISM microwave frequency band open world, has strong anti-interference ability and high speed data transmission rate, mainly used for controller with Wiegand input interface for auxiliary equipment, card reader range 3 ~ 30 meters. Characterized by advanced technology, high degree of integration, in line with the industrial use of environment, beautiful shape small, fast read card reaction, distance, low power consumption, with anti-lightning protection, stable performance, etc.
Technical parameters | Model | YY803 | YY806 |
| Power source | DC 6V-12V |
| Static current (standby) | ≤15mA |
| Dynamic current(reading card) | ≤25mA |
| Frequency rate | 2.4GHz |
| Read distance | 3~30 meters adjustable (depending on work environment) |
| Antenna | built-in 18 DB directional oscillator antenna |
| Identify Angle | horizontal 45°, vertical 45° |
| Output format | Wiegand (26/36/34/44BIT -optional), the machine 485 output |
| Protection methods | resettable fuse, optical coupling isolation protection |
| Storage temperature | -40℃~+85℃(-40℉~+185℉) |
| Working temperature | -20℃~+60℃(-4℉~+140℉) |
| Relative humidity | 0%~75% |
| Shell material | aluminum die casting |
| Size | 160×120×40mm | 305×305×20mm |
| Weight | 2.0Kg | 2.7Kg |
| Color | grey |
Application areas:
Vehicle management: parking lot vehicle access management and scheduling
Personnel management: attendance, access control, meeting attendance, personnel access management, intelligent management of patrol, personnel of all kinds identity, underground mine personnel positioning management and tracking
Other: logistics important items in the automatic identification and tracking management, workshop, factory production lines and unified scheduling management
Note: 1.The Wiegand interface Reader: unexpected data cable to connect the contrary, Reader and the controller
2. Including pole installation fixture (a fixture teeth, a U screw component), the back of the antenna with a vertical polarization identification and dimensions label can't normal communication

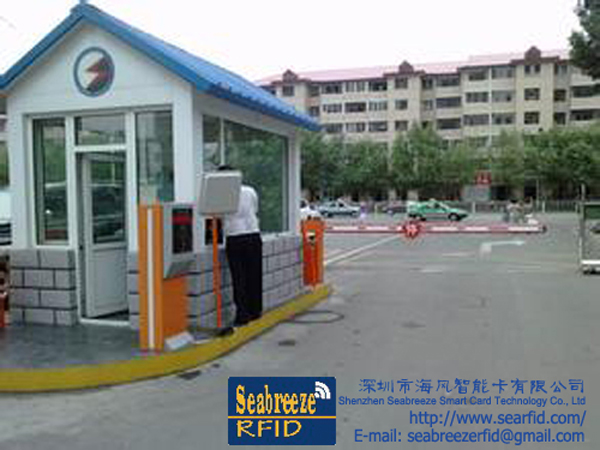

2.4G directional long-distance Reader application schematic
